Technical Datasheet – High-Speed Double-Twisting Bunching Machine
Product Introduction
Ultra-fine copper conductors may be precisely stranded at high production speeds with minimal noise and excellent surface polish using the Φ300 High-Speed Double-Twisting Bunching Machine. It is perfect for producing high-frequency, data, headphone, communication, and micro-electronic wires because of its double-twist action, which guarantees stable bunch compactness and consistent lay length.
The machine’s high-efficiency frequency-controlled motor and optimised twist bow structure, designed for long-term industrial performance, guarantee outstanding stability, little wire deformation, lower power consumption, and longer service life.
Key Features
- Wide Twist Pitch Range (1.15–11.24 mm) suitable for various conductor designs
- Ultra-Fine Wire Capability precision processing of copper wires from 0.04–0.10 mm
- Energy-Efficient Frequency Motor (4.0 kW) guarantees low running cost and stable torque
- High-Speed Double-Twist System for consistent bunching with minimal wire stress
- Independent Take-Up Tension System for consistent and smooth coil winding
- Low Noise & Vibration Design for operator comfort and extended component life
- Touch-Screen PLC Control Panel for real-time speed monitoring and pitch accuracy
Technical Parameters
| Specification | 300MM | 500MM | 630MM |
|---|---|---|---|
| Final Twisted Area | 0.137–0.5 mm² | 0.35–2.5 mm² | Up to 6.0 mm² |
| Inlet Conductor Dia. | Φ0.05–Φ0.28 mm | Φ0.08–Φ0.45 mm | Φ0.08–Φ0.68 mm |
| Twist pitch range | 4.36–17 mm | 4.22–39.64 mm | 11.43–64.60 mm |
| Twisted copper diameter | 0.04-0.10mm | 0.08 – 0.41 mm | 0.23-0.64 mm |
| Motor | 4.0kw | 5.5kw | 7.5kw |
| PDF File | 300MM | 500MM | 630MM |

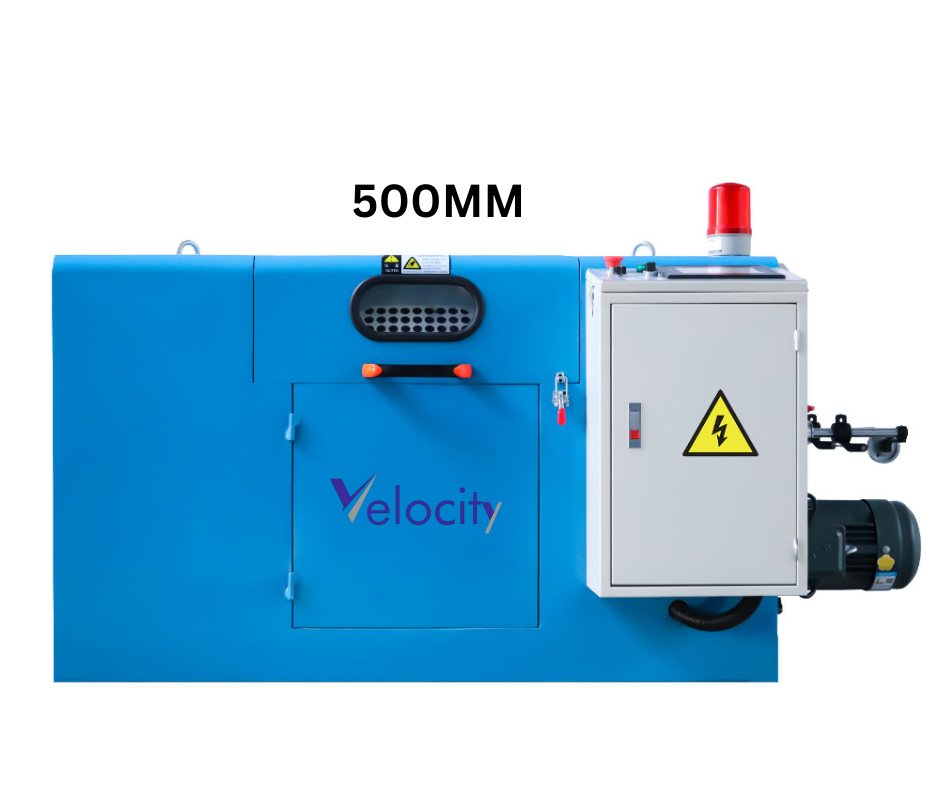

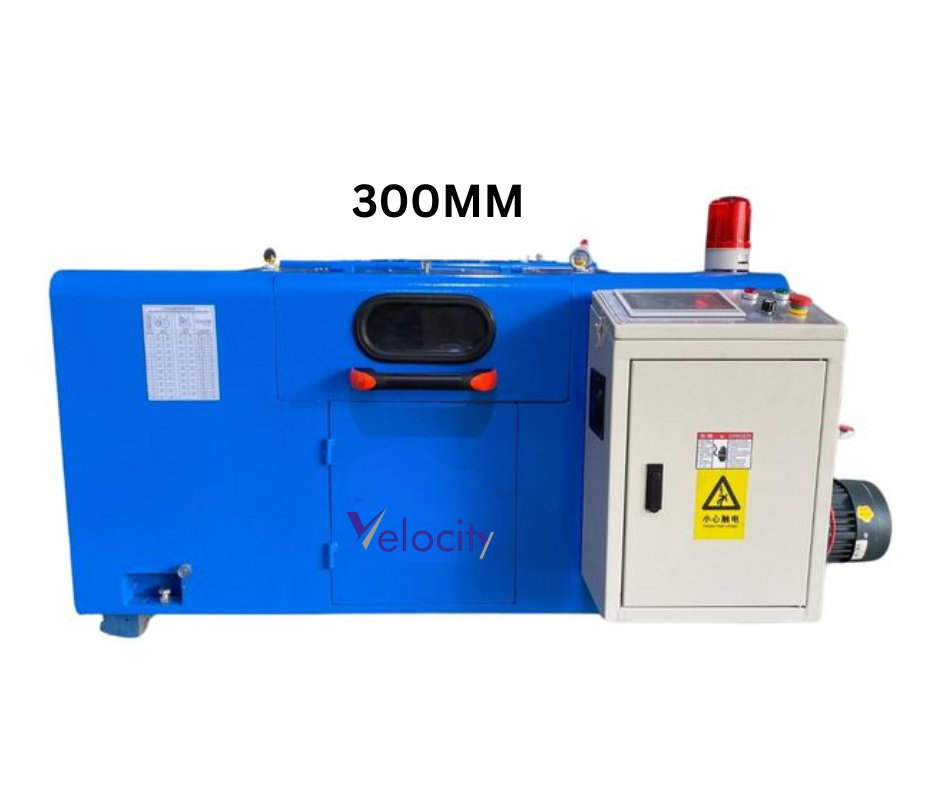

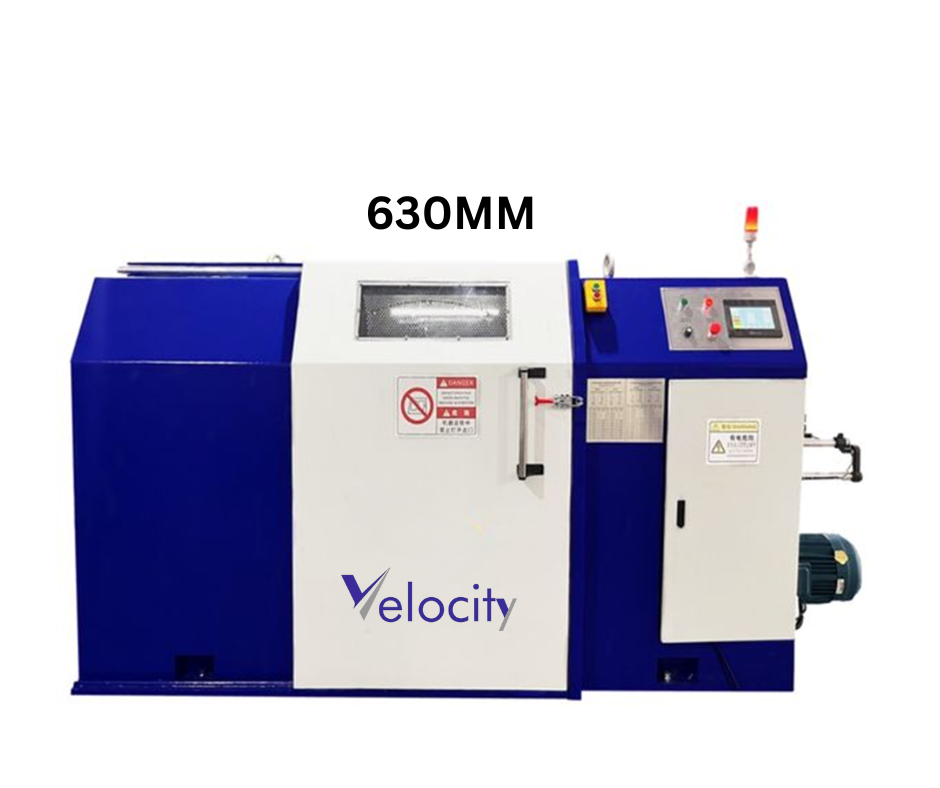

Picture is just for reference
