Technical Datasheet – Double-Twisting Bunching Machine
Product Introduction
The Tandem/Double-Twist Double Twisted Bunching Machine is designed to bunch and compact fine conductors and multi-strand wires of superior quality. For power cables, control cables, data cables, and speciality wire assemblies, this machine offers stable twist geometry, good concentricity, and high production throughput. It is available in working widths of 800 mm, 1000 mm, and 1250 mm. Easy die-change design and low maintenance make it suitable for continuous operation in industrial production lines.
Key Features
- Double-twist (two-stage) arrangement for superior strand consolidation and improved mechanical stability.
- Wide working widths (800 / 1000 / 1250 mm) to handle varying conductor counts and bundle diameters.
- Variable pitch control with servo/AC inverter for precise twist per meter settings.
- Robust heavy-duty frame for vibration-free operation and long service life.
- Easy die mounting & quick-change system to reduce downtime.
- Centralized coolant/lubrication provisions and trough for tidy working environment.
- User-friendly HMI + PLC control with recipe storage for repeatable setups.
- Energy-efficient drives (VFD/servo) with soft-start and overload protection.
- Optional pay-off / take-up synchronization for integration into existing lines.
- Safety guards, interlocks and emergency stops as standard.
Technical Parameters

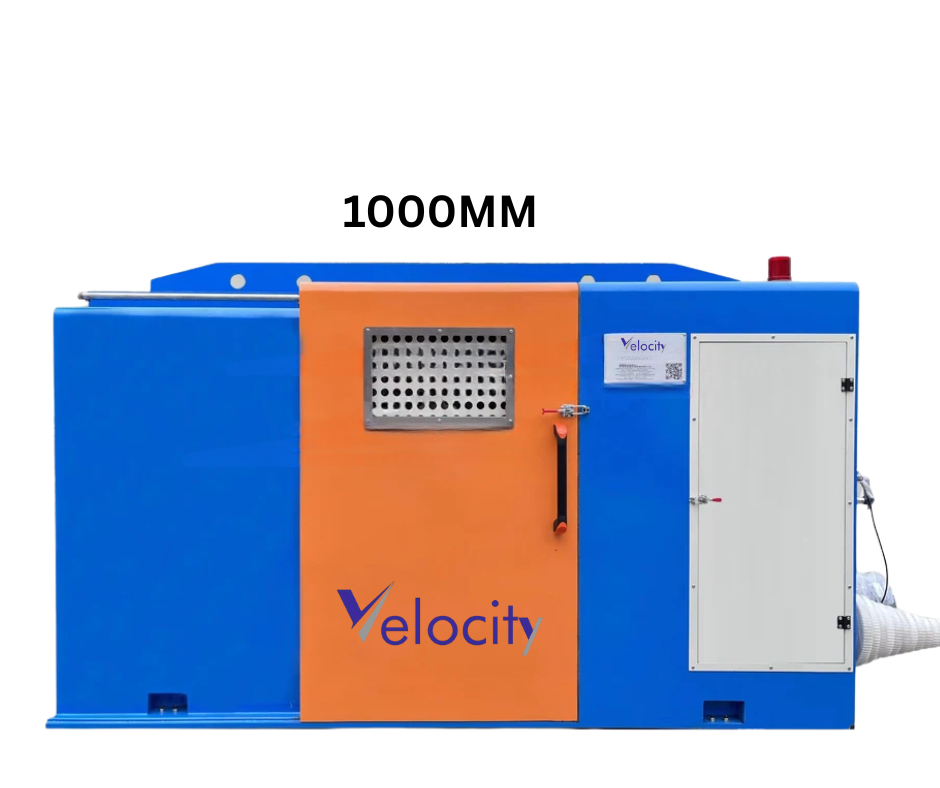

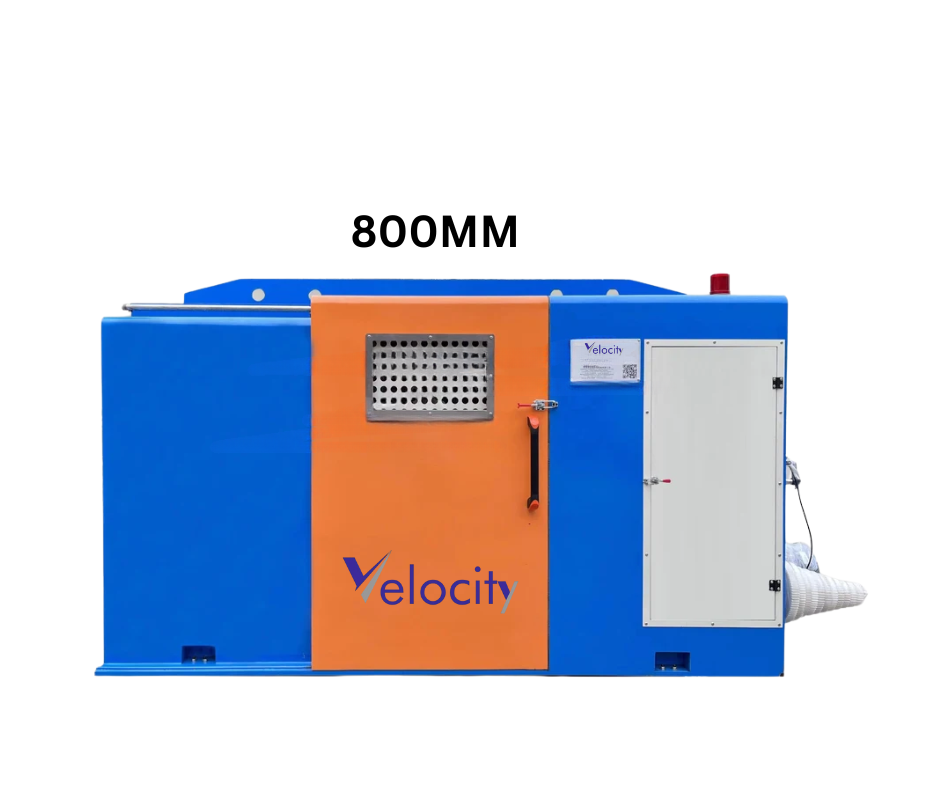

| Machine Model | 800mm | 1000mm |
|---|---|---|
| Twisting Section | 2.5–16.0 sqmm | 6.0–25 sqmm |
| Diameter of Single Wire | 0.29–1.0 mm | 0.38–1.7 mm |
| Twisting Distance | 22.51–152.32 mm | 35–200 mm |
| Net Weight | Approx. 5000 kg | Approx. 8000 kg |
| Power | 15 HP | 25 HP |
| PDF File | 800MM | 1000MM |
Picture is just for reference
