Technical Datasheet – Fine Wire Drawing Machine
Product Description
A high-precision tool for creating ultra-fine copper and aluminium wires for cutting-edge electrical, electronic, and communication applications is the Fine Wire Drawing Machine. The machine draws wire from 1.6 mm inlet diameter down to 0.1–1.0 mm, providing consistent performance across a wide variety of fine-wire requirements thanks to its outstanding accuracy.
This machine provides exceptional control over multi-stage reduction, guaranteeing consistent wire diameters, improved surface polish, and low material stress thanks to its 24/26/28 programmable dies. It is perfect for continuous, high-volume production situations because of its high-speed operating at 2500 RPM, which increases productivity while maintaining steady, vibration-free performance.
The Fine Wire Drawing Machine is the ideal option for producers of fine electrical conductors, signal cables, data wires, automobile wiring, and micro-conductor goods because to its sturdy structure, energy-efficient design, and compatibility with payout, annealing, and take-up machines. It satisfies the needs of the contemporary cable and electronics sectors by providing great precision, long-term dependability, and exceptional wire quality.
Product Highlights
- Production of Ultra-Fine Wire: Precise wire diameters as tiny as 0.1 mm can be achieved, making it perfect for applications requiring extreme precision.
- Multi-Die Setup (24/26/28 Dies): Superior dimensional precision and ideal reduction steps are guaranteed by customisable die choices.
- 2500 RPM High-Speed Drawing: guarantees steady, continuous fine-wire production and excellent output.
- Excellent Surface Coating: creates clean, smooth wire surfaces that are appropriate for use in micro-conductors, electronics, and communication.
- Compatibility with Two Materials: Excellent uniformity in the manufacture of fine wire made of copper and aluminium.
- Consistent, Minimal Vibration Performance: designed to minimise wear on dies and components and provide precise performance.
- Broad Output Range: draws wire diameters ranging from 1.6 mm at the intake to 0.1–1.0 mm at the output.
- Simple Line Integration: Payoff units, annealers, spoolers, and take-up systems are all compatible.
Technical Specifications
| Specification | 18D | 24D | 26D | 28D |
|---|---|---|---|---|
| Metal Material | Copper / Aluminium | Copper / Aluminium | Copper / Aluminium | Copper / Aluminium |
| No. of Dies | 18 | 24 | 26 | 28 |
| Inlet | 2.0–1.2mm | 1.4–0.6mm | 1.6–0.6mm | 1.6–0.6mm |
| Outlet | 0.800–0.25mm | 0.35–0.08mm | 0.5–0.1mm | 0.45–0.1mm |
| Speed | 1500M/MIN | 2500MPM | 2500MPM | 2500MPM |
| Power | 22.5KW (AC) | 18.7KW / 25HP | 22.2KW / 30HP | 22.5KW / 30HP |
| PDF File | 18D File | 24D File | 26D File | 28D File |
Key Features
- Extremely Fine Wire Capability: Precise reduction down to 0.1 mm is achieved, making it perfect for applications involving micro conductors, electronics, and thin cables.
- High-Speed Capabilities: operates at 2500 RPM, guaranteeing steady drawing stability and high production.
- Configurable Multi-Die System: Options of 24/26/28 dies allow tailored reduction steps for specific wire grades and final sizes.
- Superior Surface Quality: creates the homogeneous, smooth wire surfaces needed for delicate signal and electrical applications.
- High-Duty Constant Operation: designed for high-volume, long-term production with little upkeep.

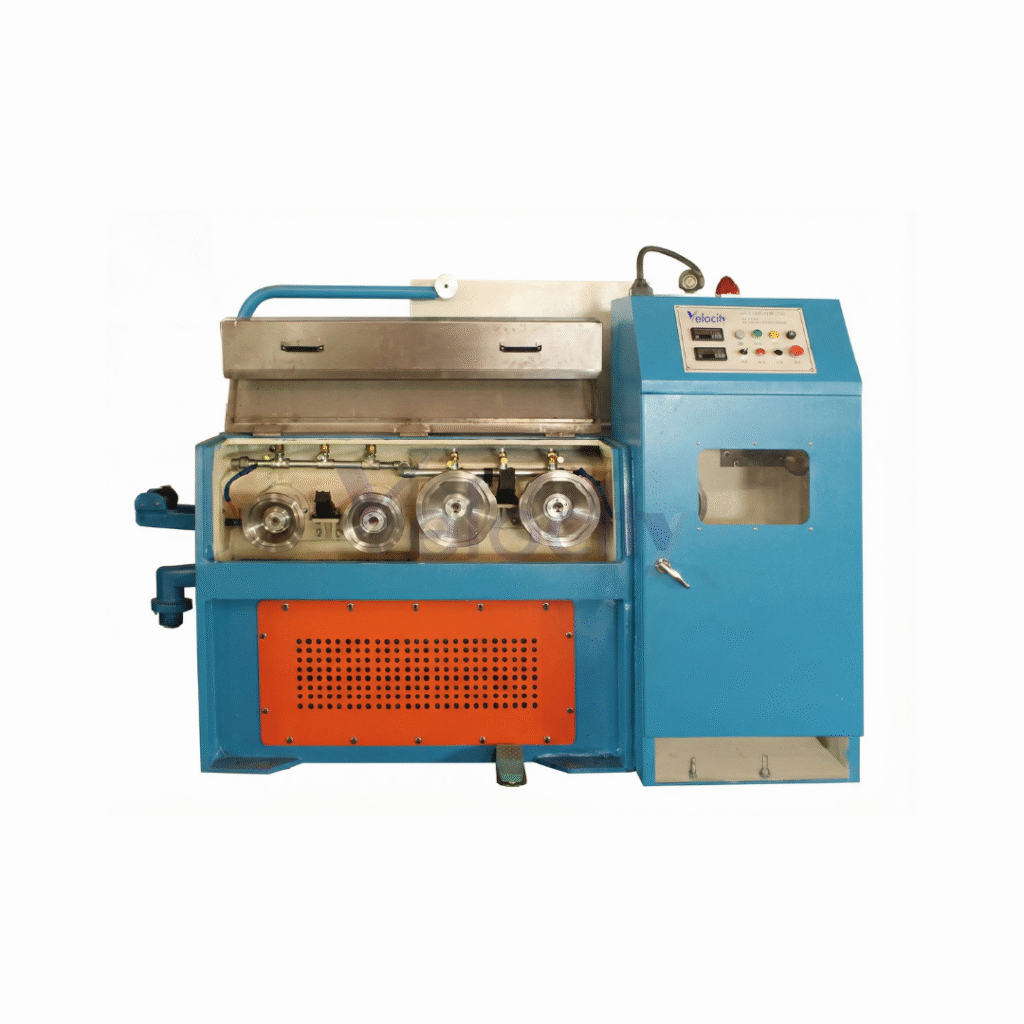

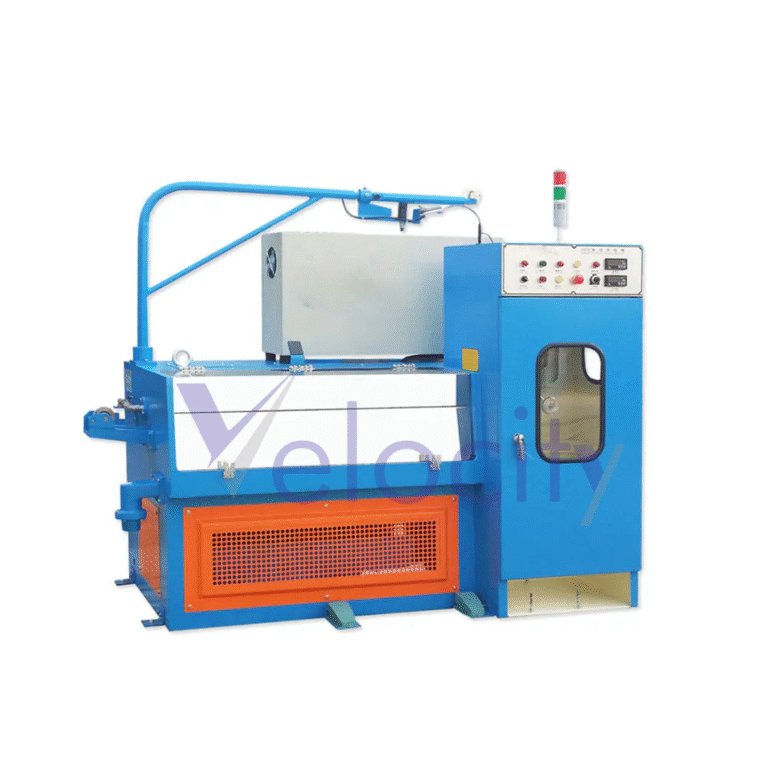

Picture is just for reference
