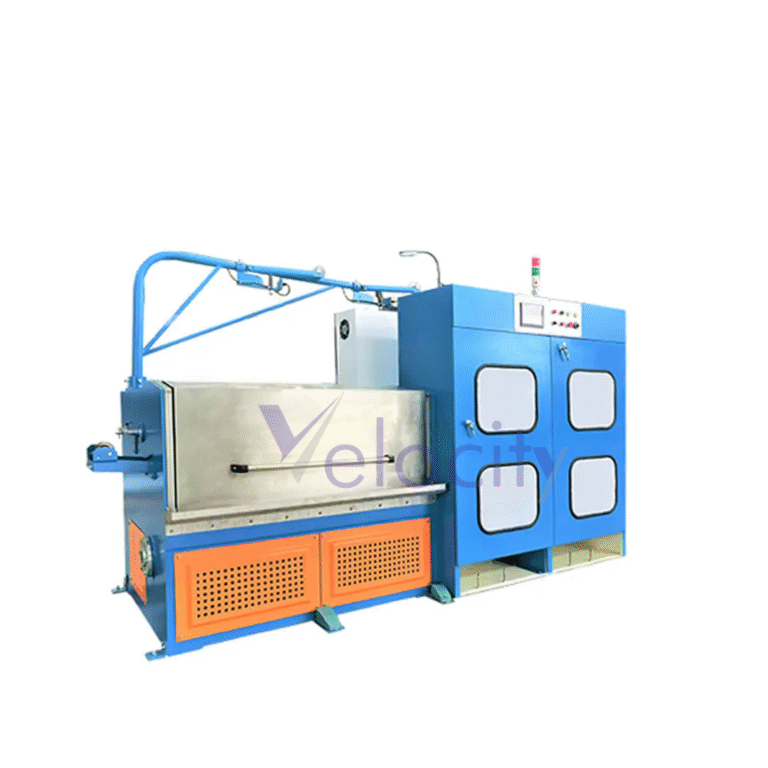

Fine Wire Drawing Machine – High-Precision Wire Reduction for Copper & Aluminium
Product Description
For manufacturers who want precision, speed, and reliable wire quality, our Fine Wire Drawing Machine was designed. This machine, which can process copper and aluminium wires with inlet diameters up to 1.6 mm and final wire widths as thin as 0.1 mm, performs exceptionally well.
It is perfect for electrical, electronics, cable, and industrial wire applications since it is designed for continuous, high-speed production, enables dual-wire drawing, and can run at a maximum speed of 2500 RPM.
This machine guarantees low energy consumption, less wire breakage, and consistent wire diameter throughout all drawing phases thanks to its durability and precision optimisation.
Technical Comparison Table – 26-Die vs 28-Die Models
| Specification | Fine Wire Drawing – 26 Dies | Fine Wire Drawing – 28 Dies |
|---|---|---|
| Material | Copper / Aluminium | Copper / Aluminium |
| Max. Inlet Wire OD | 1.6 mm | 1.6 mm |
| Finished Wire Size | 0.1 – 1.0 mm | 0.1 – 1.0 mm |
| Number of Wires | 2 wires | 2 wires |
| Number of Dies | 26 | 28 |
| Max. Speed | 2500 RPM | 2500 RPM |
| Best Use Case | Standard fine wire production | Ultra-fine precision & higher reduction stages |
| Throughput | High | Very High |
| Dimensional Accuracy | Excellent | Superior (more gradual reduction) |
Key Features
- Broad Material Compatibility: provides flexibility for various production needs and supports both copper and aluminium.
- Range of Fine Output: provides finished wire diameters between 0.1 and 1.0 mm, making it perfect for the production of micro-cables and fine electrical wire.
- High Efficiency in Production: increases throughput without sacrificing quality by drawing up to two wires at once.
- The capacity to draw in multiple stages: For a smooth, regulated diameter reduction, it is offered in 26-die and 28-die variants.
- High-Speed Function: supports high-volume production settings by operating at up to 2500 RPM.
- Accurate and Stable Drawing: Because of the optimised die design and sophisticated tension control, it guarantees a consistent wire diameter with little variation.
Picture is just for reference
