Wire Drawing Machine

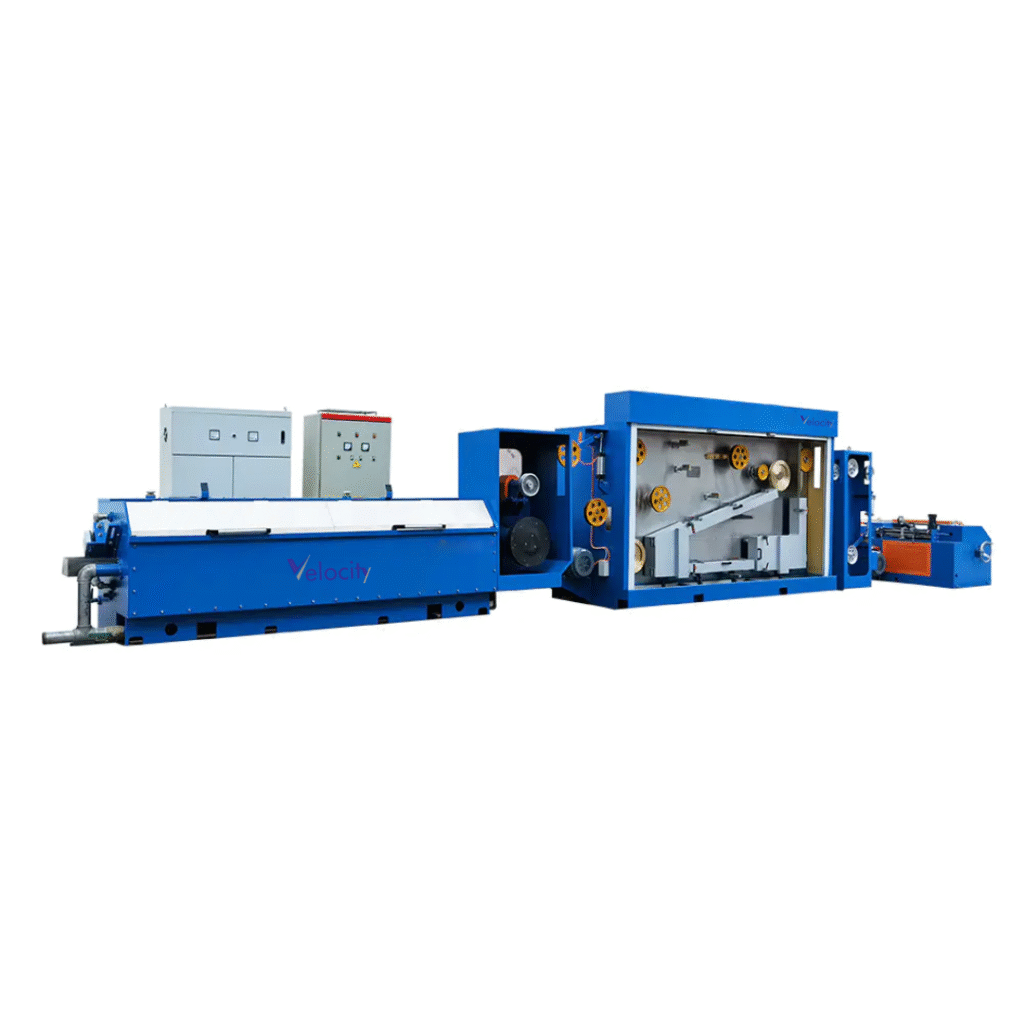

Rod Break Down Machine
| Specification | Details |
|---|---|
| Metal Material | Copper |
| Max. Inlet Wire OD | 8 mm |
| Output Diameter | 1.6 – 3.5 mm |
| Max. No. of Dies | 13 |
| Speed | 800 m/min |

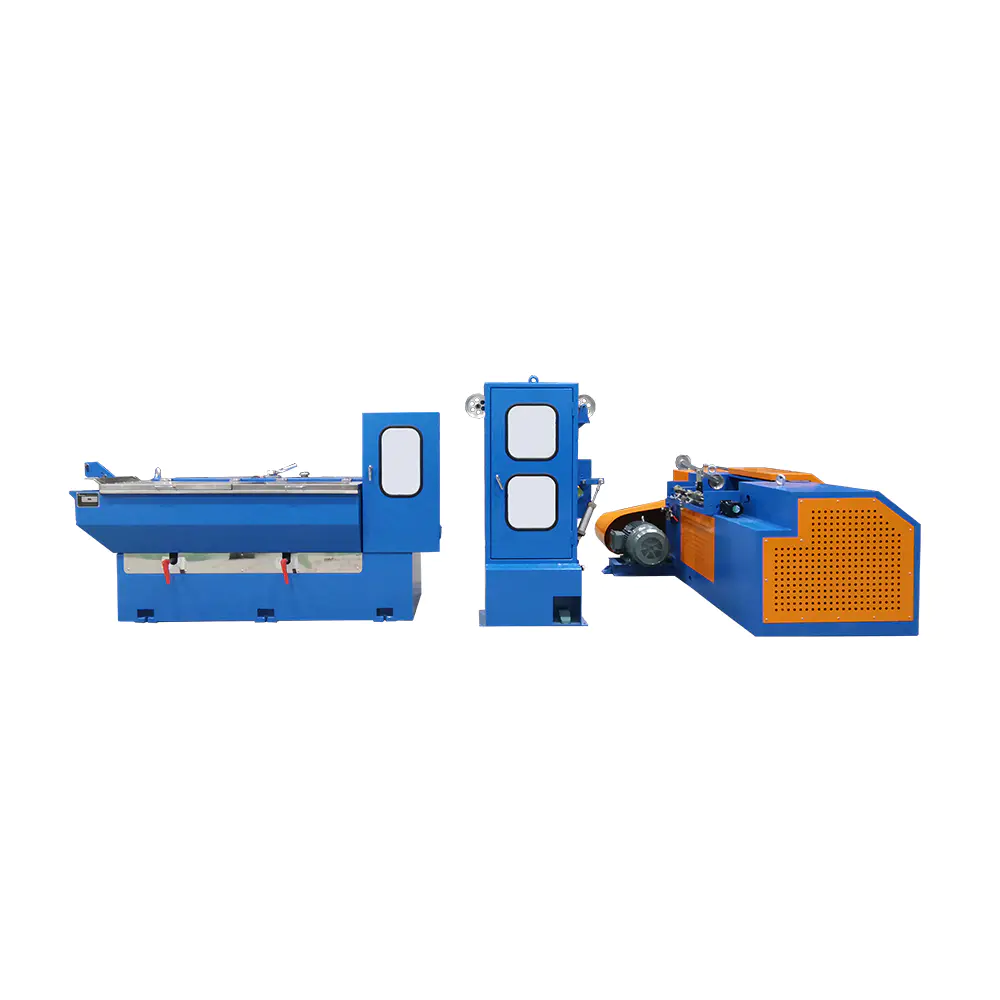

Intermediate Wire Drawing Machine
| Specification | Details |
|---|---|
| Metal Material | Copper/Aluminium |
| Max. Inlet Wire OD | 2.5 – 3.5 mm |
| Output Diameter | 0.4 – 1.6 mm |
| Max. No. of Dies | 17 |
| Speed | 30 m/s |

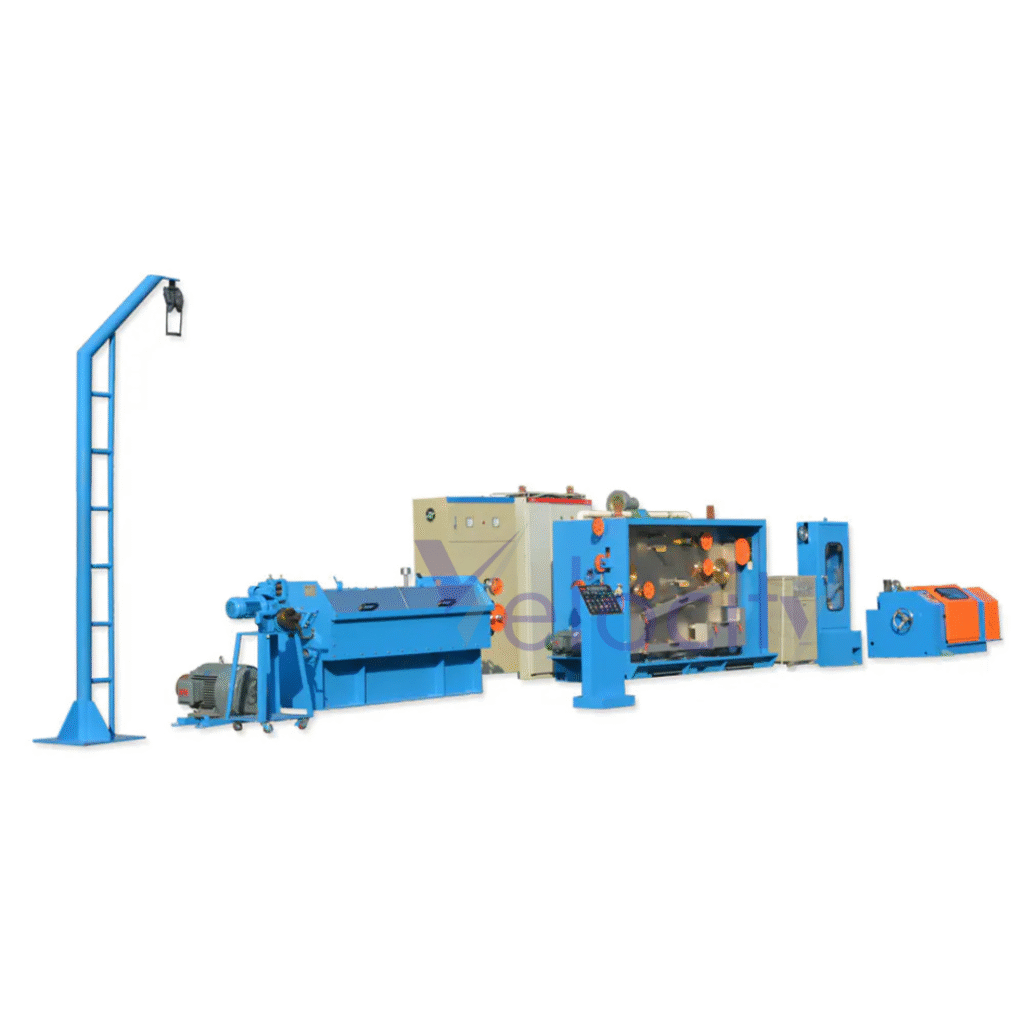

Intermediate Wire Drawing with Annealing
| Specification | Details |
|---|---|
| Metal Material | Copper |
| Max. Inlet Wire OD | Φ3.0 – 3.5mm |
| Output Diameter | Φ0.8 – 2.8mm |
| Max. No. of Dies | 17 |
| Speed | 1300 RPM |

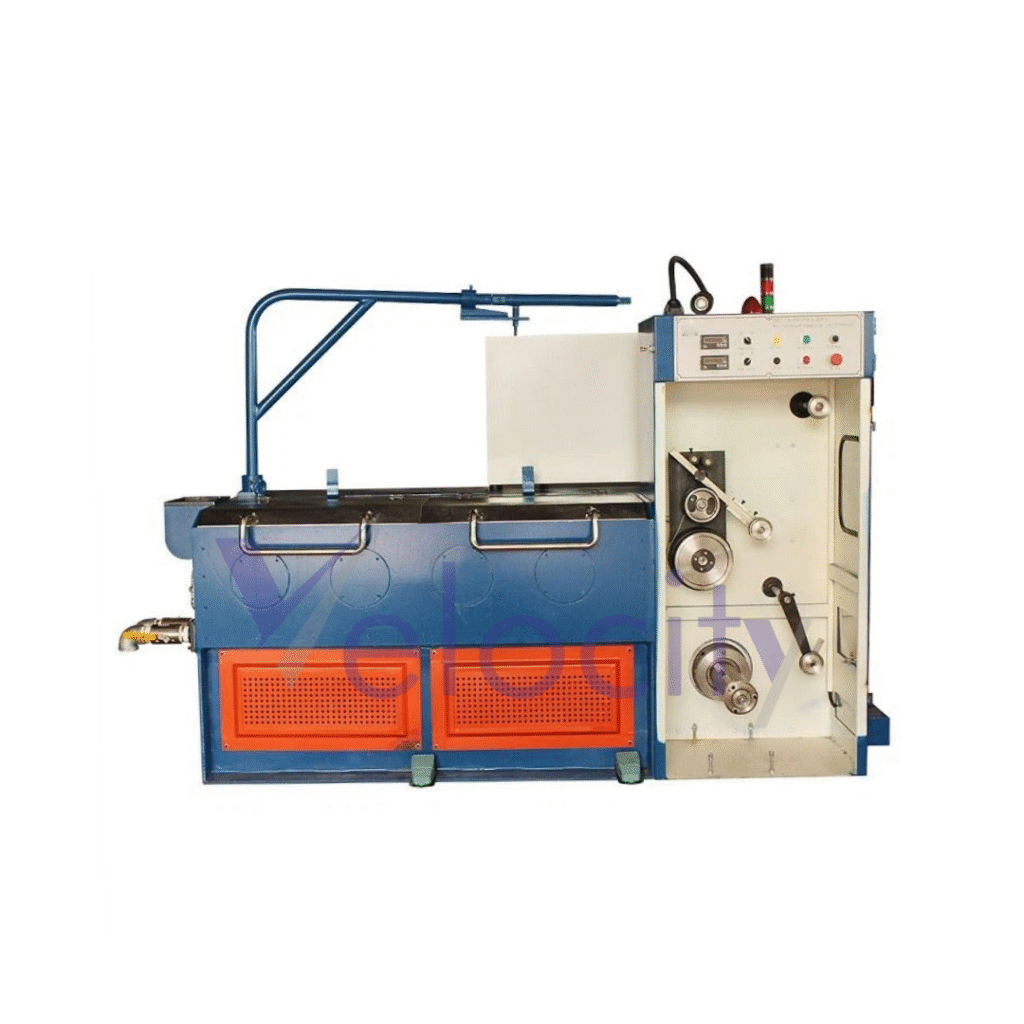

Medium Wire Drawing
| Specification | Details |
|---|---|
| Metal Material | Copper/Aluminium |
| Max. Inlet Wire OD | Φ1.2~2.0 mm |
| Output Diameter | Φ0.25-0.70mm |
| Max. No. of DIes | 18 |
| Speed | 2500RPM |

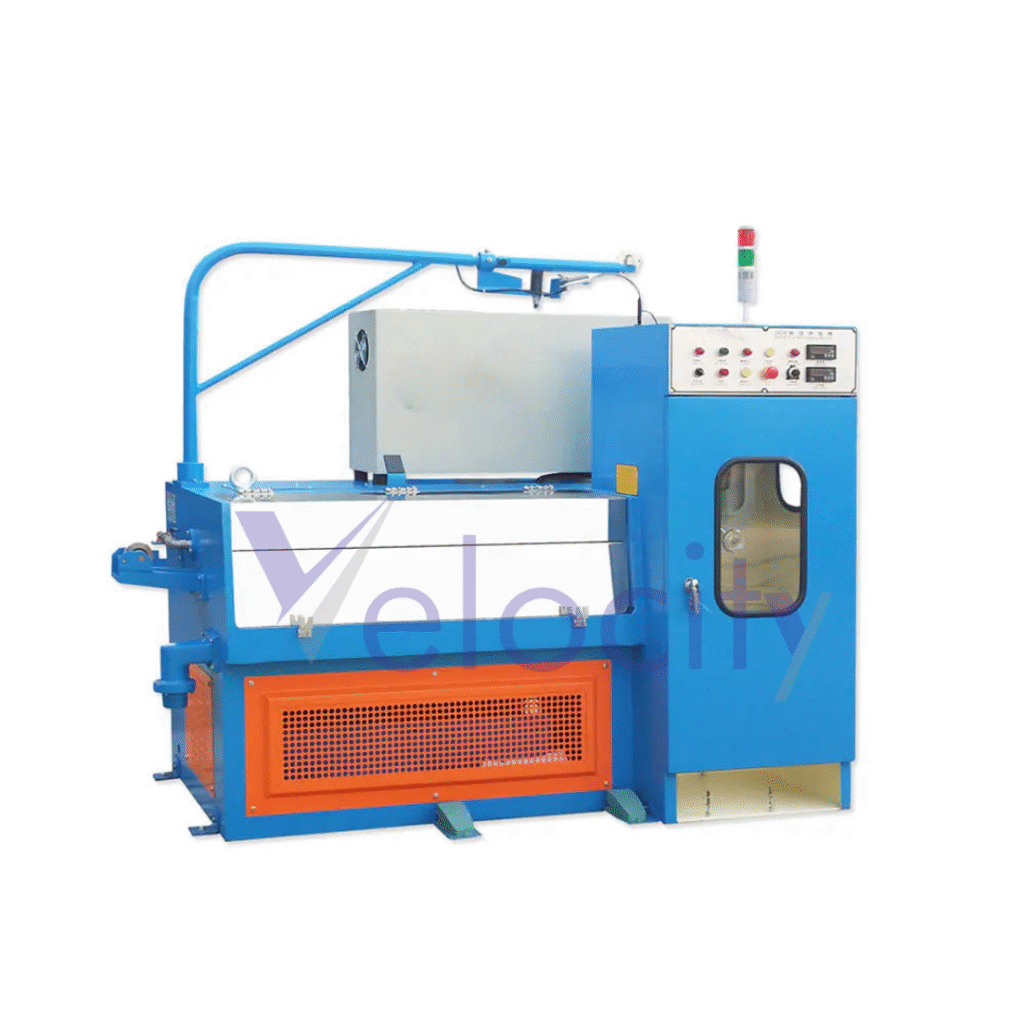

Fine Wire Drawing
| Specification | Details |
|---|---|
| Metal Material | Copper/Aluminium |
| Max. Inlet Wire OD | 1.6 mm |
| Output Diameter | 0.1 – 1 mm |
| Max. No. of DIes | 24/26/28 |
| Speed | 2500RPM |

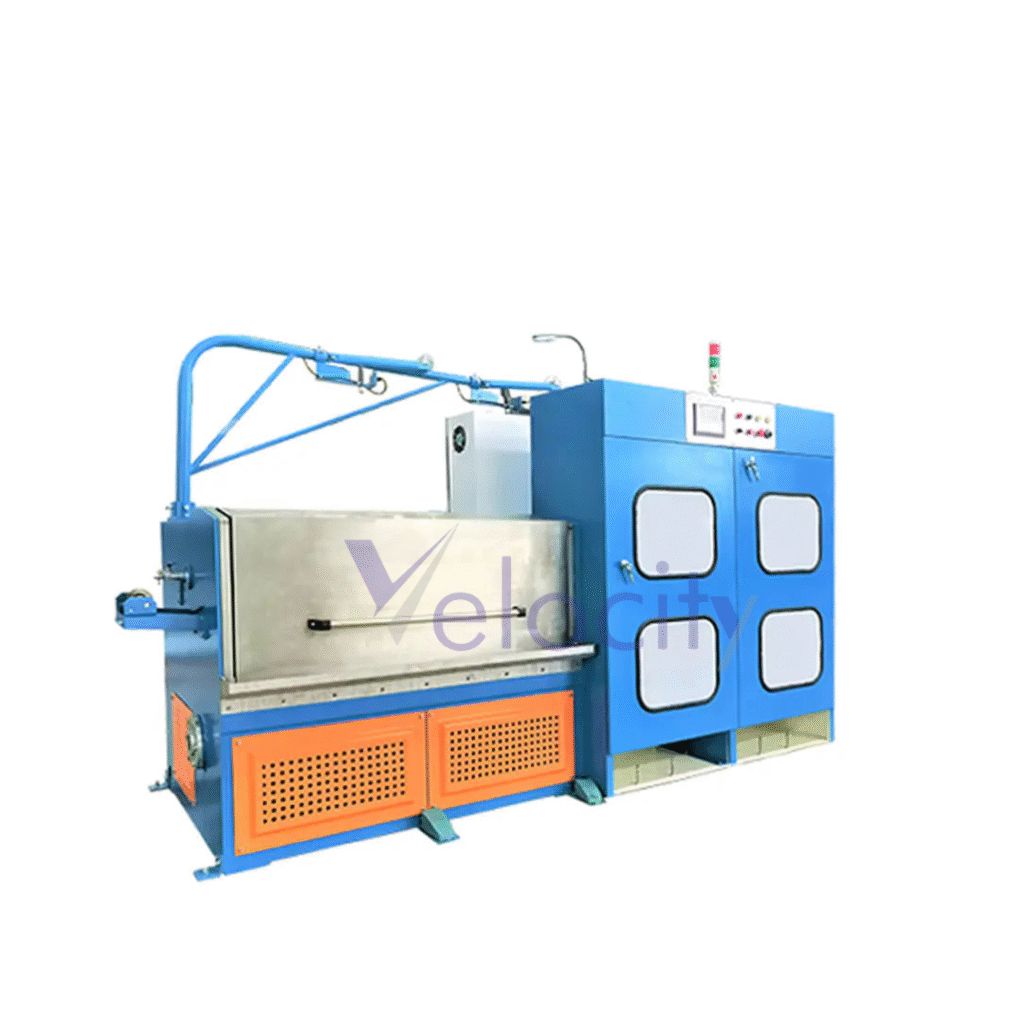

Double Line Fine Wire Drawing
| Specification | Details |
|---|---|
| Metal Material | Copper/Aluminium |
| Max. Inlet Wire OD | 1.6 mm |
| Output Diameter | 0.1 – 1 mm |
| Max. No. of Wires | 2 |
| Max. No. of Dies | 26/28 |
| Speed | 2500RPM |

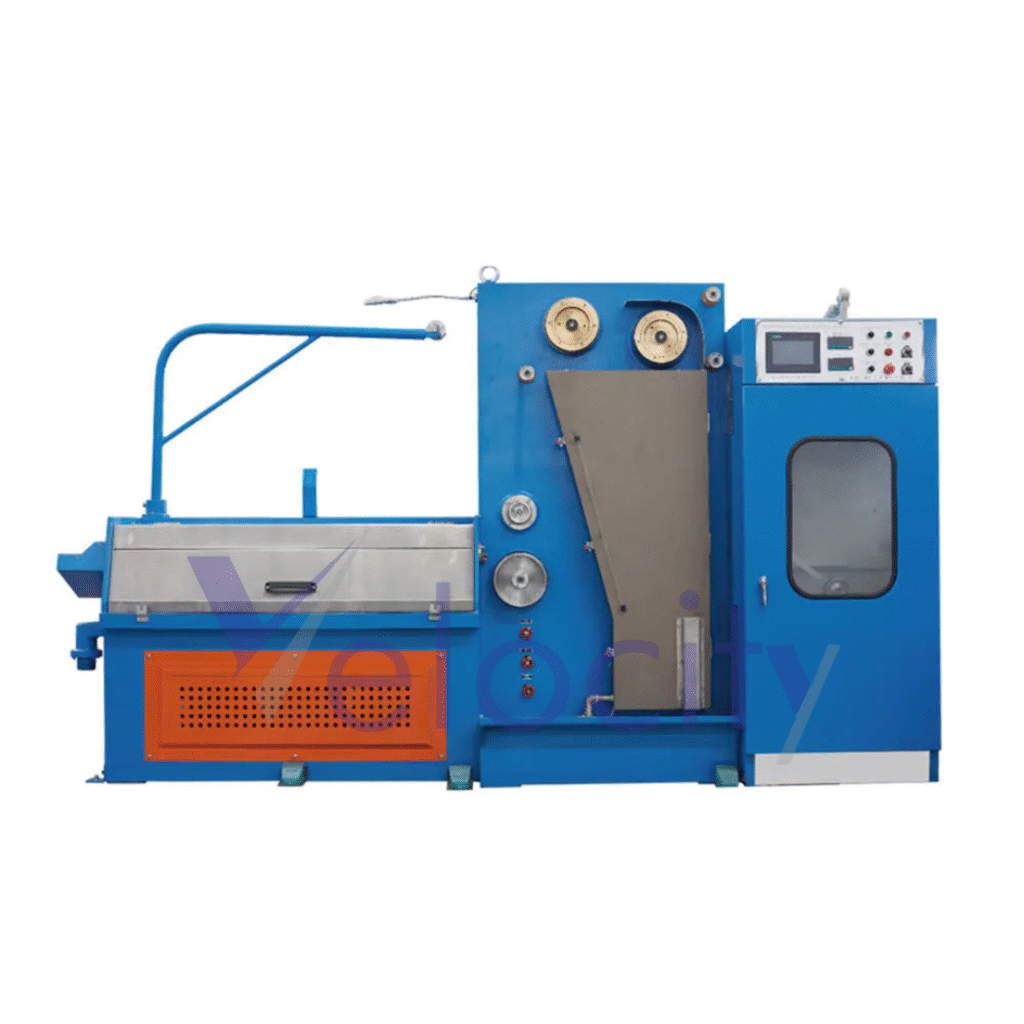

Fine Wire Drawing with Annealing
| Specification | Details |
|---|---|
| Metal Material | Copper |
| Max. Inlet Wire OD | 1.6 mm |
| Output Diameter | Φ0.15-0.6mm |
| Max. No. of Wires | 1 |
| Max. No. of DIes | 24/26/28 |
| Speed | 2000m/min |

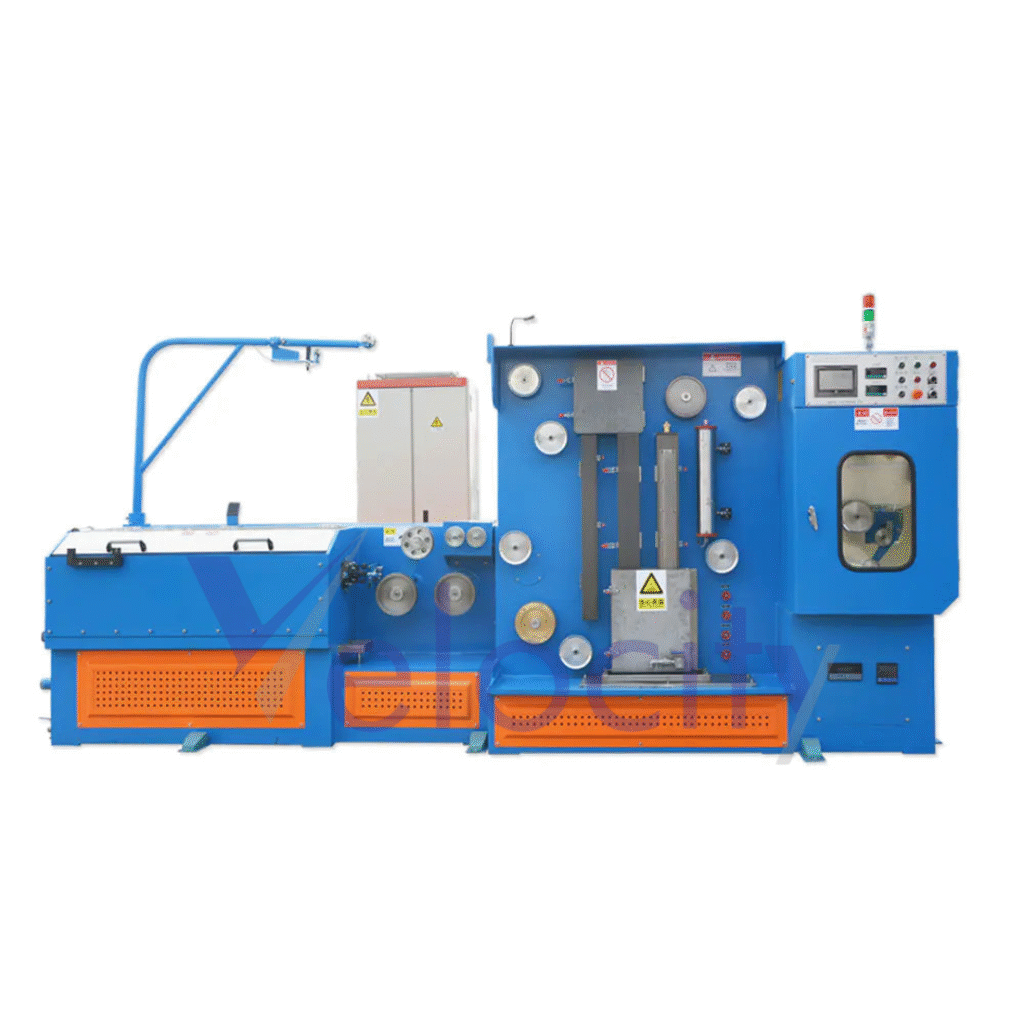

Brass Wire Drawing
| Specification | Details |
|---|---|
| Metal Material | Brass |
| Max. Inlet Wire OD | Φ0.8mm-Φ1.2mm |
| Output Diameter | Φ0.10mm-Φ0.32mm |
| Max. No. of Wires | 1 |
| Max. No. of DIes | 22 |
| Speed | 1500m/min |
